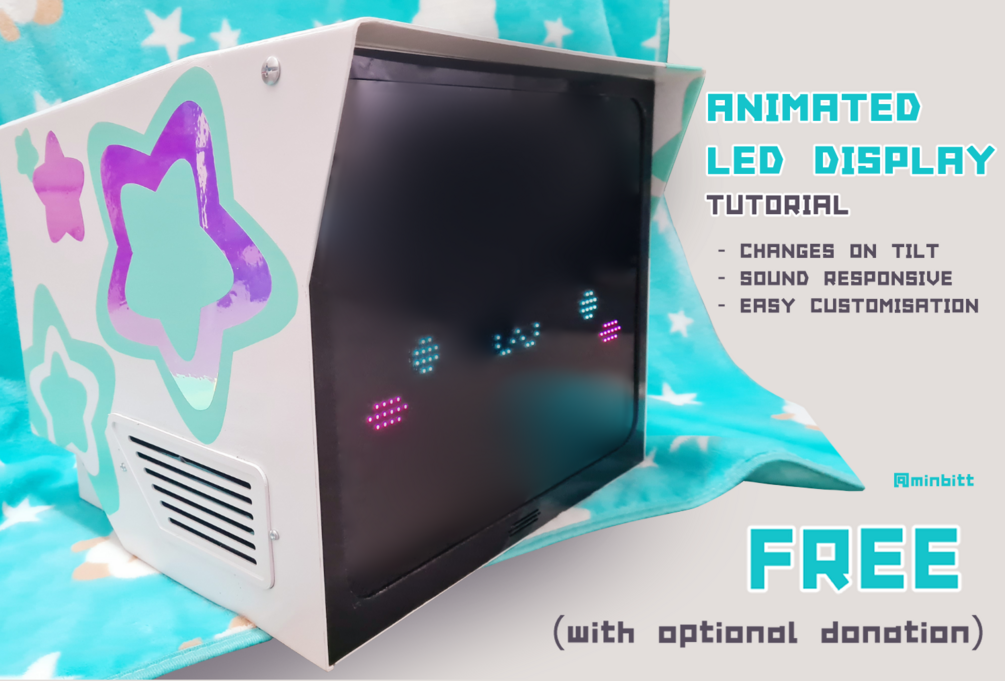

Animated LED Display Tutorial

FINAL EDIT: This link will no longer be updated. Find the latest file HERE!

Thank you!

How to make an Animated LED Display for decoration, costume or simply as a fun project.

This package has:

• Detailed instructions (In Dark or Light mode)
• The entire code
• Pre-set Image files (Edit, remix, customise to your liking)
• 3D model of the case for the electronics

If you have any questions, doubts, or want to share your creation, feel free to reach out at my socials.

13/08/2024 v4 Edit: Code and instructions have been updated with the following fixes:

• MatrixPortal S3 can be used as an alternative to the outdated MatrixPortal M4

02/08/2024 v3 Edit: Code and instructions have been updated with the following fixes:

• Utilising v 8.2.7 UF2 bootloader, as the v 9 bootloader does not work with the code.

13/08/2023 v2 Edit: Code and instructions have been updated with the following fixes:

• Utilising the latest UF2 bootloader
• Fixed code for the 2.5mm pitch RGB Matrix (due to swapped green and blue pins)
• Adjustable expression animation frame speed

Happy creating!
